SmartVPU-Narva
SmartVPU-Mars
SmartVPU-Jupiter
· Key Features
CPU: 4 RISCV-1 and 4 RISCV-2 cores with dynamic configuration
GPU：3D&2D GPU
NPU: 16TOPs AI computing power, supporting INT4/INT8/INT16/FP16
Multimedia: 4K video decoding support, 4K encoding support
Display: 4K video output, dual display support Efficiency: Optimized power consumption for sustainable operation.
Video interface: 4*HDMI TX/2*DP TX/4*MIPI DSI TX/1*HDMI IN/4*MIPI CSI RX
Interface: 3*PCIe3.0/2*SATA3.0/2*USB3.1/2*USB2.0/4*GMA
Memory: LPDDR4X/LPDDR5, supporting up to 32GB of memory
Operating systems supported: Android, Linux, and domestic operating systems
16nm Low power design

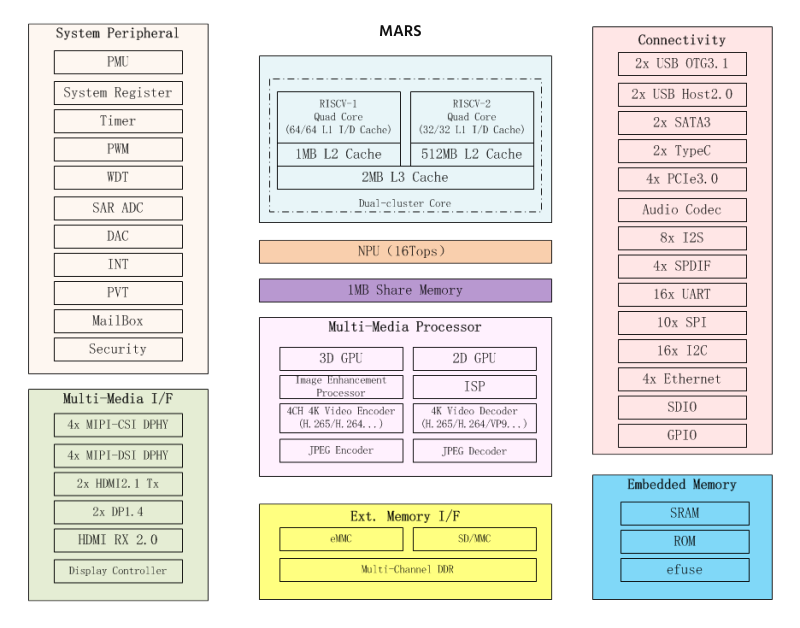

· Block Diagram:
· Application
