SmartVPU-Jupiter

Jupiter is a new generation SOC for video codec. It uses a 16nm process technology, based on RISCV's big.LITTLE design, with 8K UI performance, 8K VPU, and NPU. The built-in dedicated NPU is mainly used for AI applications. Support multi-channel 8K video encoding and 8K video encoding, while also supporting multiple 8K outputs, which is very attractive for high-end display applications.

· Key Features
CPU: 4 RISCV-1 and 4 RISCV-2 cores with dynamic configuration
Smart VPE： AI assist video process engine
1 . Mode: offline frame-by-frame mode, online block-by-block mode
2 . Prep engine: CV-based and AI-based for pixel process or semantic-based extraction (ROI, attention map..)
3 . Post engine: （DirectX VPP extension) CV-based and AI-based for pixel-based processing or semantic-based processing
4 . Extension : private AI E2E compression, AI mode decision for new standard (VVC)
Display: 8K video output, dual display support
Video interface: 4*HDMI TX/2*DP TX/4*MIPI DSI TX/1*HDMI IN/4*MIPI CSI RX
Interface: 3*PCIe3.0/2*SATA3.0/2*USB3.1/2*USB2.0/4*GMA
Memory: LPDDR4X/LPDDR5, supporting up to 32GB of memory
Operating systems supported: Android, Linux, and domestic operating systems
16nm low power design

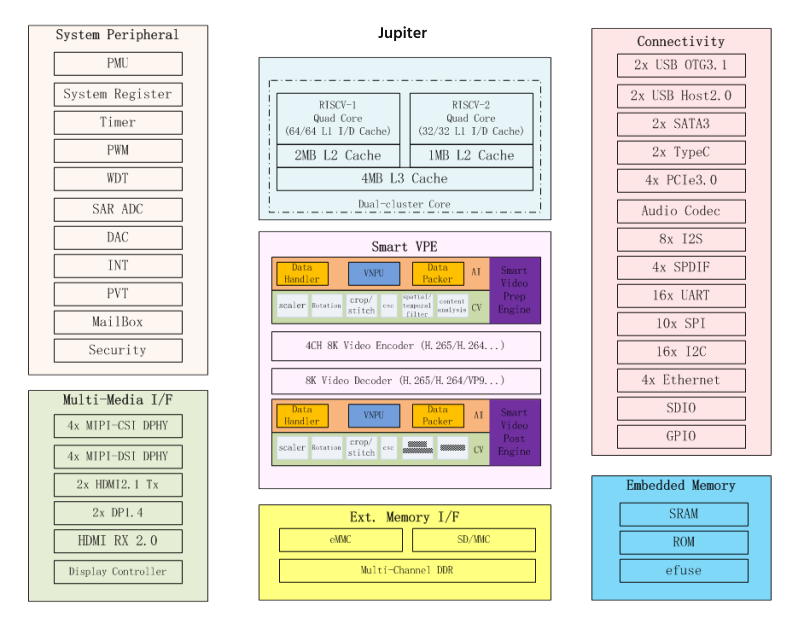

· Block Diagram:
